Design And Characterization Of 3D Printed Polymer Terahertz Multi-Mode Interference Couplers

Poster (INST-P1)

Tue, 10 Nov 2020 01:15am to 03:00am

Attend in Zoom

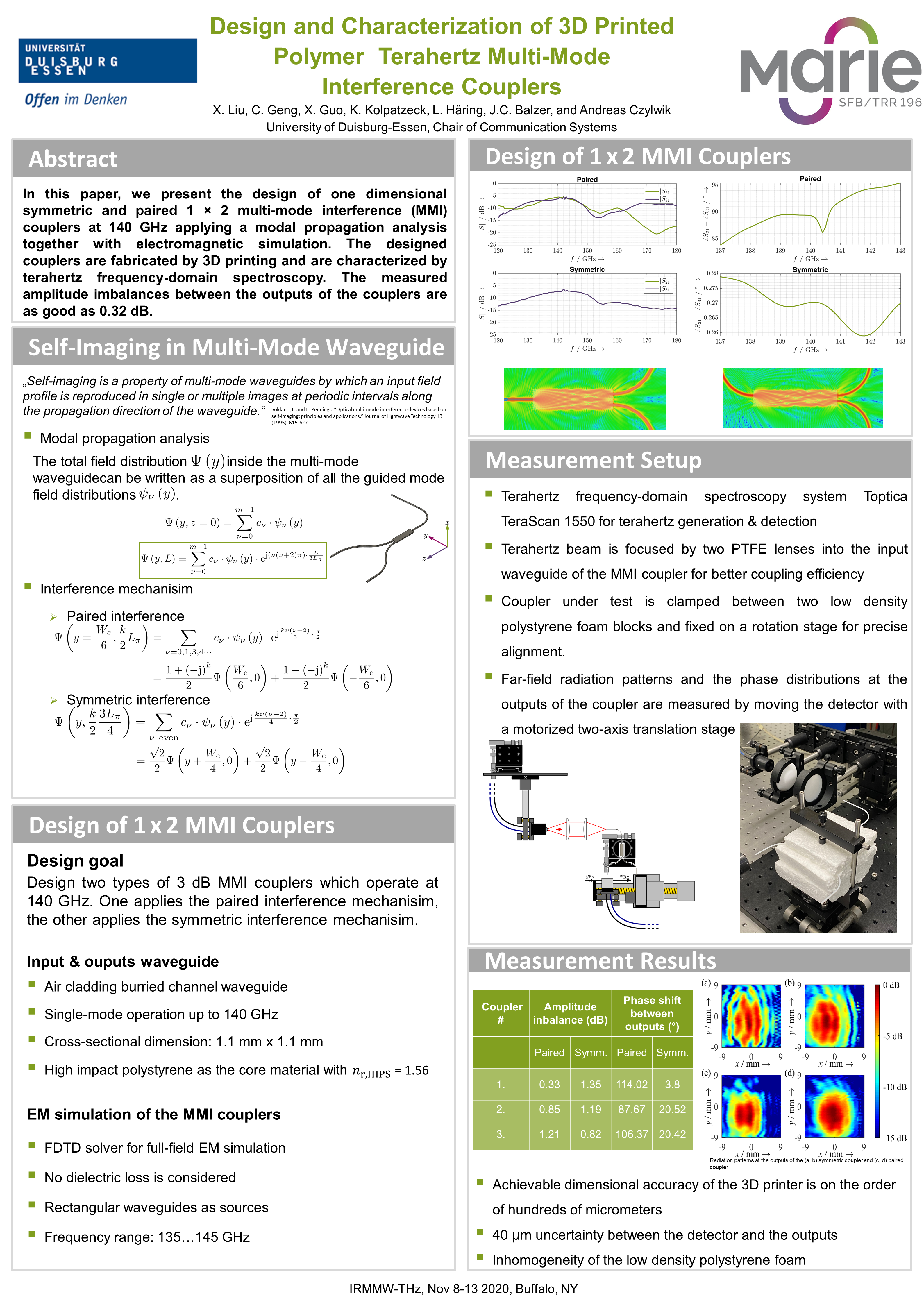

Event Picture:

In this paper, we present the design of one-dimensional symmetric and paired 1 Ãff- 2 multi-mode interference (MMI) couplers at 140 GHz applying a modal propagation analysis together with electromagnetic simulation. The designed couplers are fabricated by 3D printing and are characterized by terahertz frequency-domain spectroscopy. The measured amplitude imbalances between the outputs of the couplers are as good as 0.32 dB.

Download Abstract: pid6598101.pdf

Presenters and Authors Info

Presenter: Anonymous

Authors: Liu, Xuan; Geng, Chong; Guo, Xuan; Kolpatzeck, Kevin; Häring, Lars; Balzer, Jan; Czylwik, Andreas

University of Duisburg-Essen
