Development Of A High Power Gyrotron Prototype For GW-Class Microwave Beam Source Study

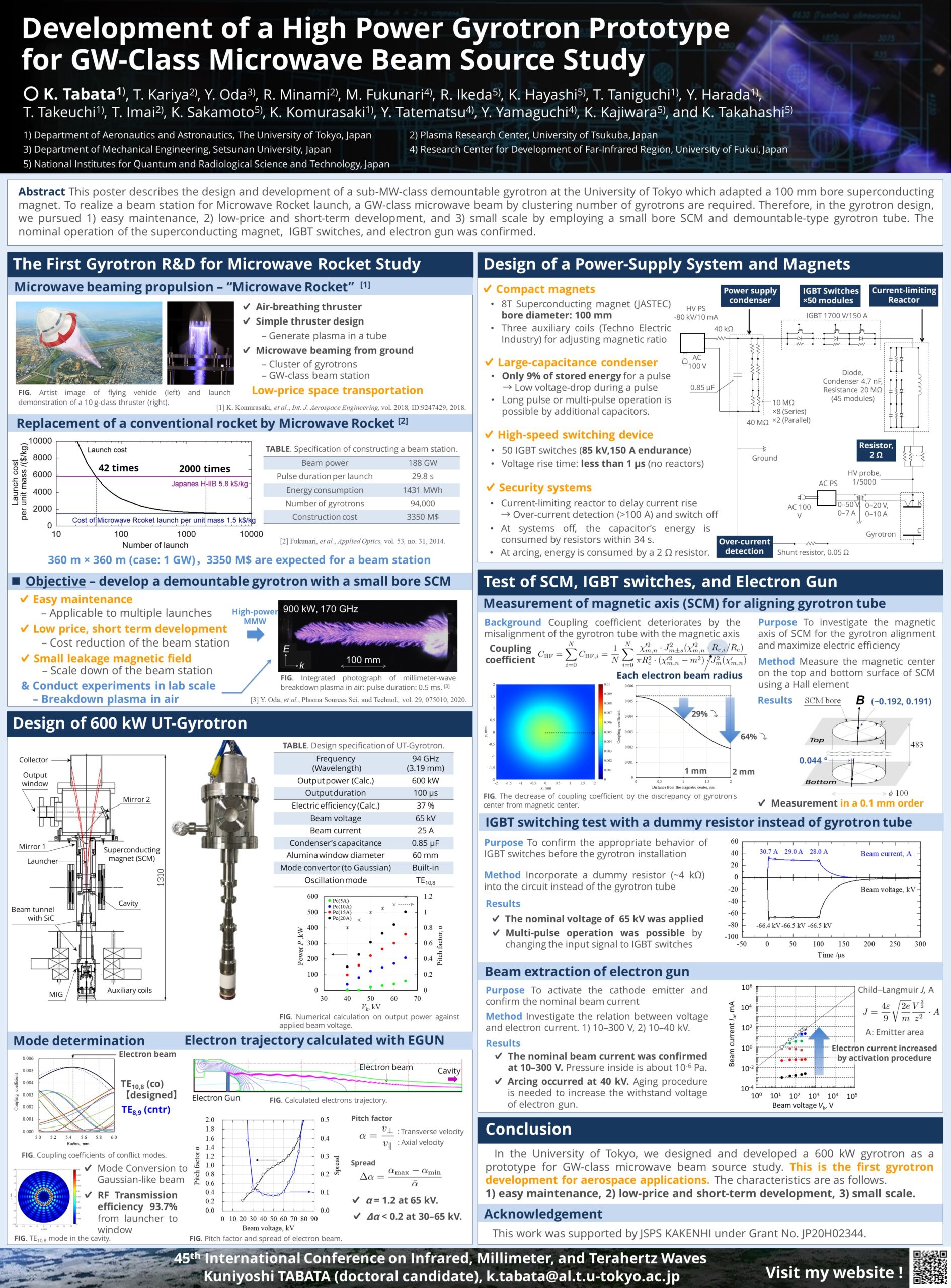

Poster (FACIL-P2)

Fri, 13 Nov 2020 01:15am to 03:00am

Attend in Zoom

Event Picture:

To realize the GW-class power source for Microwave Rocket, the cost reduction of gyrotrons is one of the solutions to lower the threshold to realize the beam station. In this study, a sub-MW-class gyrotron which adapted a smaller bore diameter of the superconducting magnet was designed and developed. The output power, pulse duration, and frequency are respectively 600 kW, 100 s, and 94 GHz. The electron current is driven by a charged capacitor bank and in-house IGBT switches. The gyrotron tube was aligned with the superconducting magnet to achieve high electric efficiency.

Download Abstract: pid6598781.pdf

Presenters and Authors Info

Presenter: Anonymous

Authors: Tabata, Kuniyoshi; Kariya, Tsuyoshi; Oda, Yasuhisa; Minami, Ryutaro; Fukunari, Masafumi; Ikeda, Ryosuke; Hayashi, Kazuo; Taniguchi, Tomohei; Harada, Yuki; Takeuchi, Takashi; Imai, Tsuyoshi; Sakamoto, Keishi; Komurasaki, Kimiya; Tatematsu, Yoshinori; Yamaguchi, Yusuke; Kajiwara, Ken; Takahashi, Koji

National Institutes for Quantum and Radiological Science and Technology, Setsunan University, The University of Tokyo, University of Fukui, University of Tsukuba
