Impedance Matching Method In High-power RTD THz Oscillator Integrated With Rectangular-cavity Resonator

Poster (ELEC-P1)

Thu, 12 Nov 2020 01:15am to 03:00am

Attend in Zoom

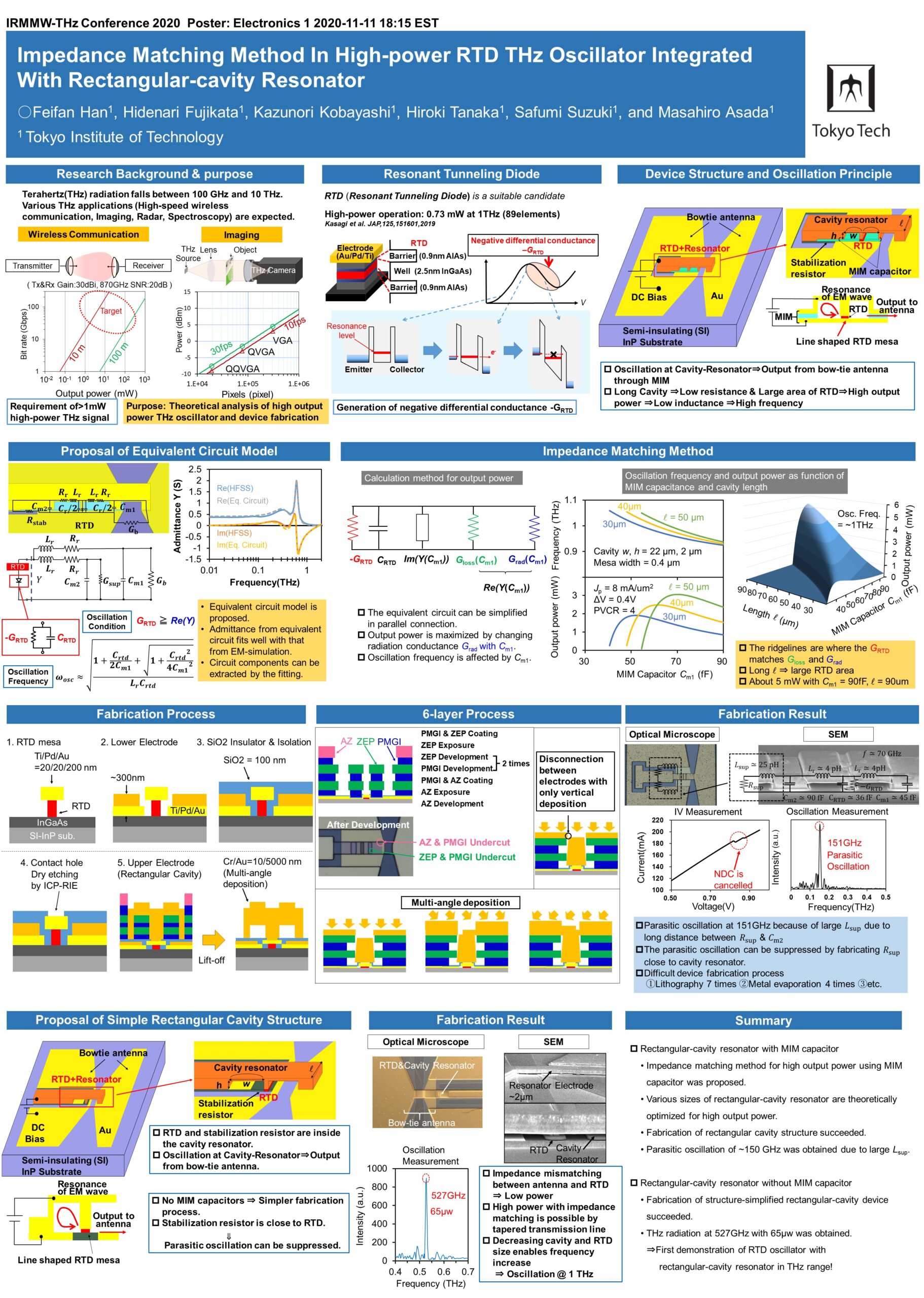

Event Picture:

We propose an impedance matching method to increase the output power of novel resonant tunneling diode (RTD) terahertz oscillator. An equivalent circuit model and analysis method for the oscillation characteristics were established. A matching point for output power was found by changing MIM capacitor, and the simulation results show that high output power of ~2 mW can be achieved at around 1 THz.

Download Abstract: pid6392243_irmmw-thz2020-hanfeifanv5.pdf

Presenters and Authors Info

Presenter: Anonymous

Authors: Han, Feifan; Fujikata, Hidenari; Kobayashi, Kazunori; Tanaka, Hiroki; Suzuki, Safumi; Asada, Masahiro

Tokyo Institute of Technology
