Sensitive Continuous-Wave Terahertz Detection By Resonant-Tunneling-Diode Oscillators

Paper (ELEC 2)

Sat, 14 Nov 2020 01:00am to 01:15am

Room: Seneca

Attend in Zoom

Event Picture:

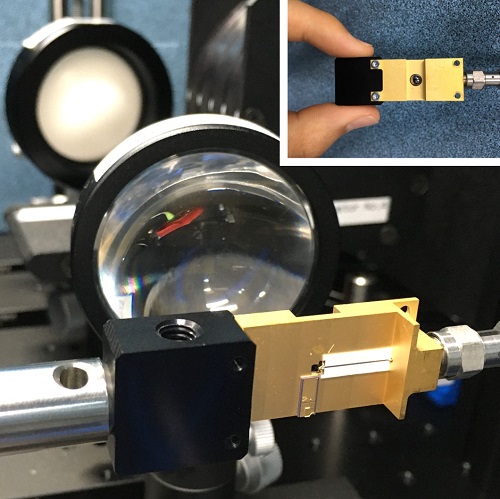

We have characterized the sensitivity and noise equivalent power (NEP) of resonant-tunneling-diode (RTD) oscillators as terahertz (THz)-wave detectors. Using a continuous-wave (CW) frequency-tunable THz-wave photomixer source, we observed that sensitive detection was achieved by RTD oscillators around its oscillation frequencies. The quasi-optical RTD device oscillating at 0.78 THz showed a maximum current responsivity of 7.3 A/W near the peak point of the negative differential conductance (NDC) region and a minimum NEP of 7.7 pW/Hz within the NDC region, respectively, at room temperature.

Download Abstract: pid6577971_yumatakida_20200827.pdf

Presenters and Authors Info

Presenter: Anonymous

Authors: Takida, Yuma; Suzuki, Safumi; Asada, Masahiro; Minamide, Hiroaki

RIKEN, Tokyo Institute of Technology
